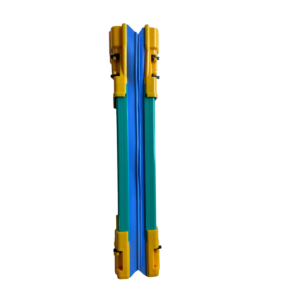

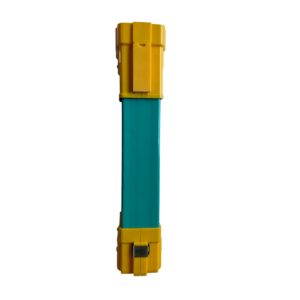

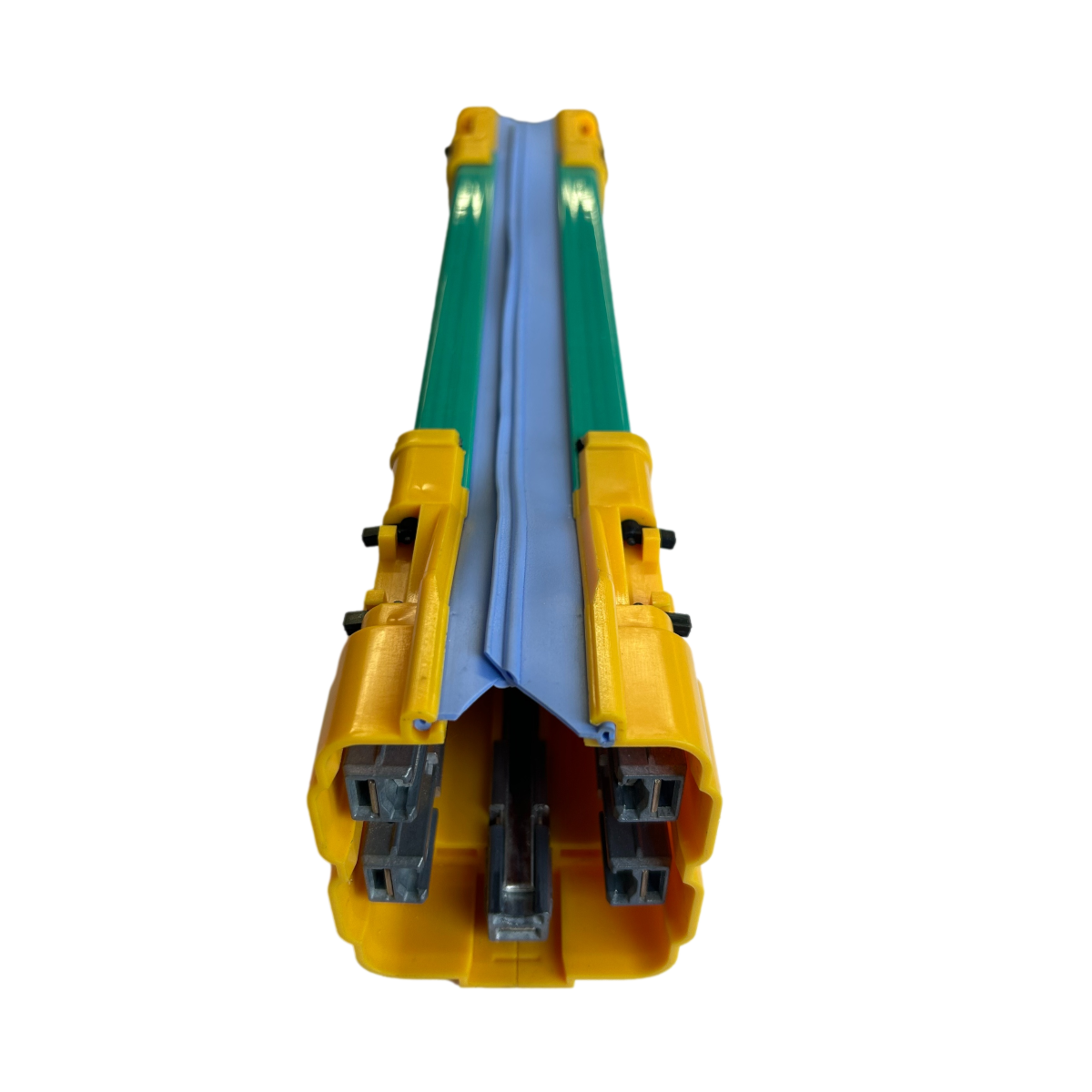

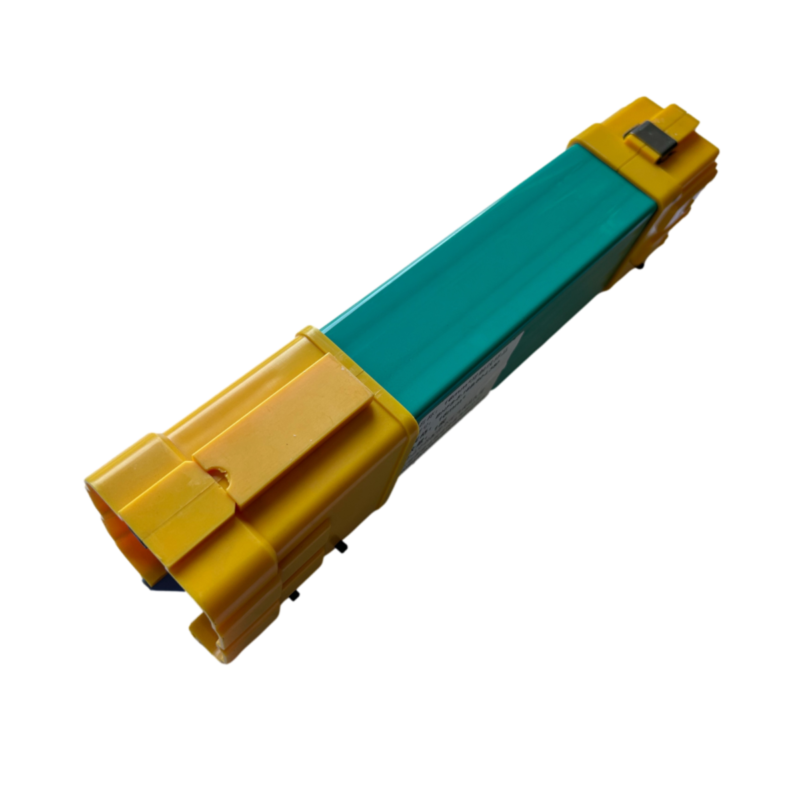

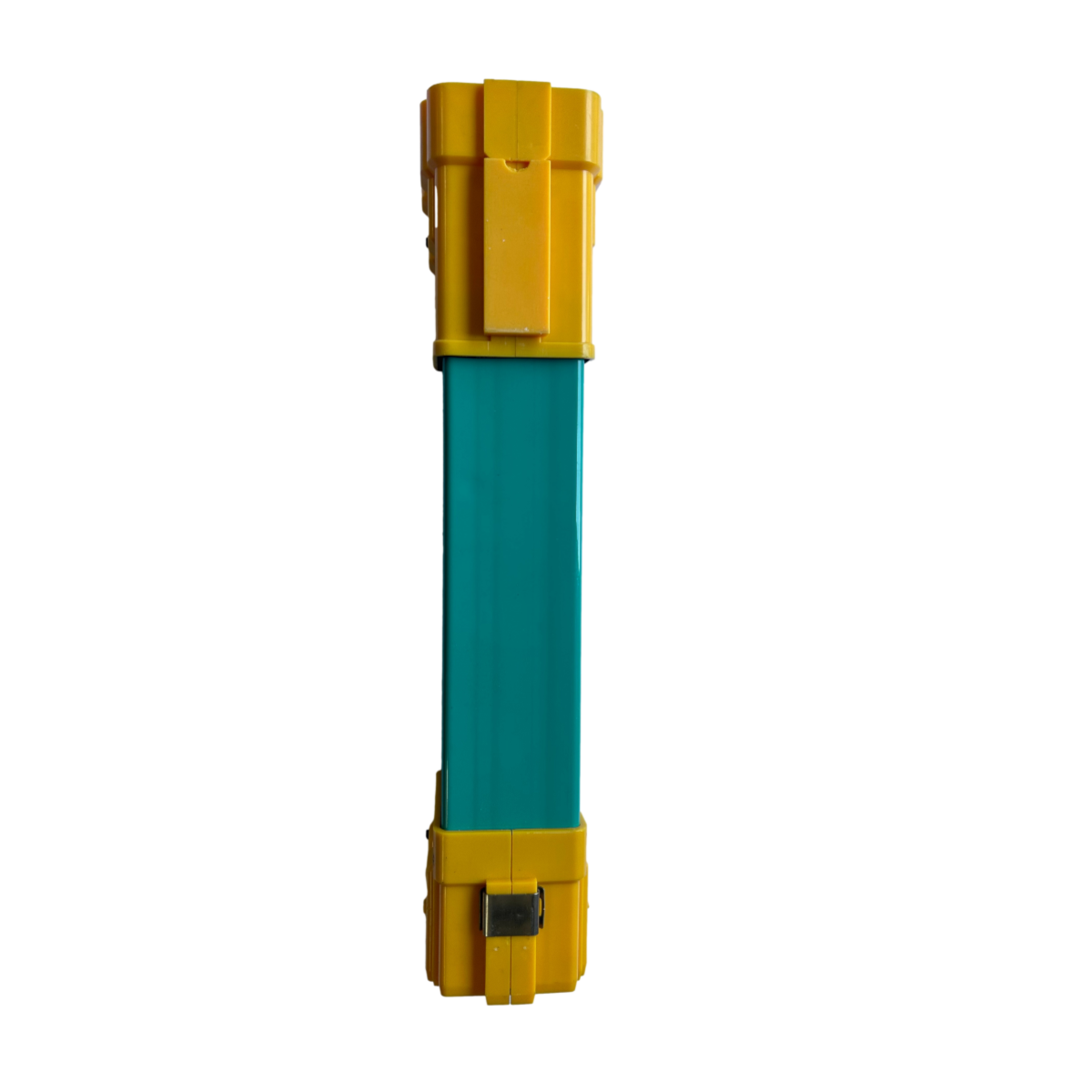

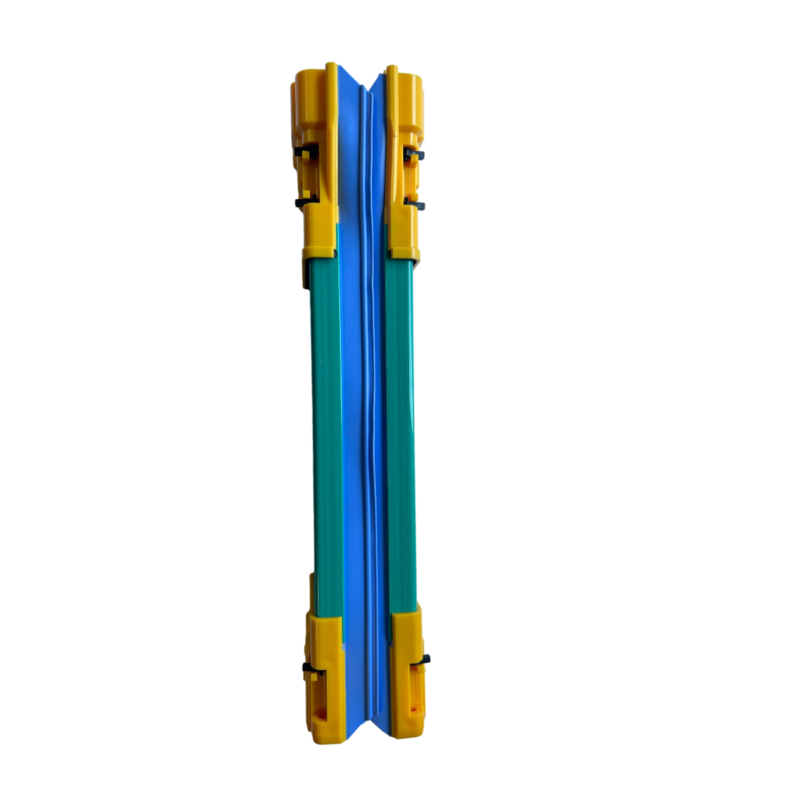

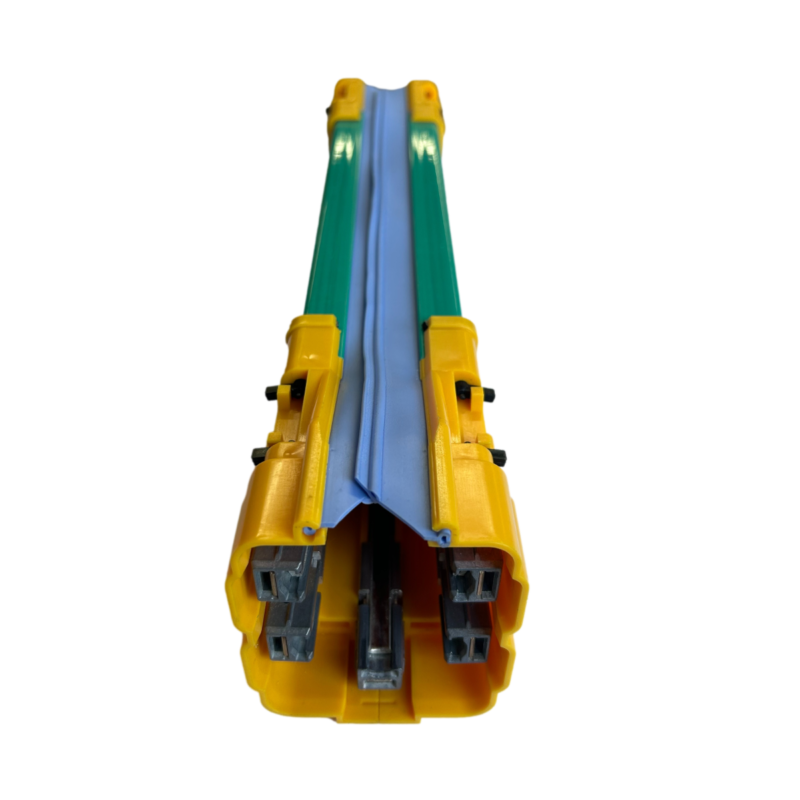

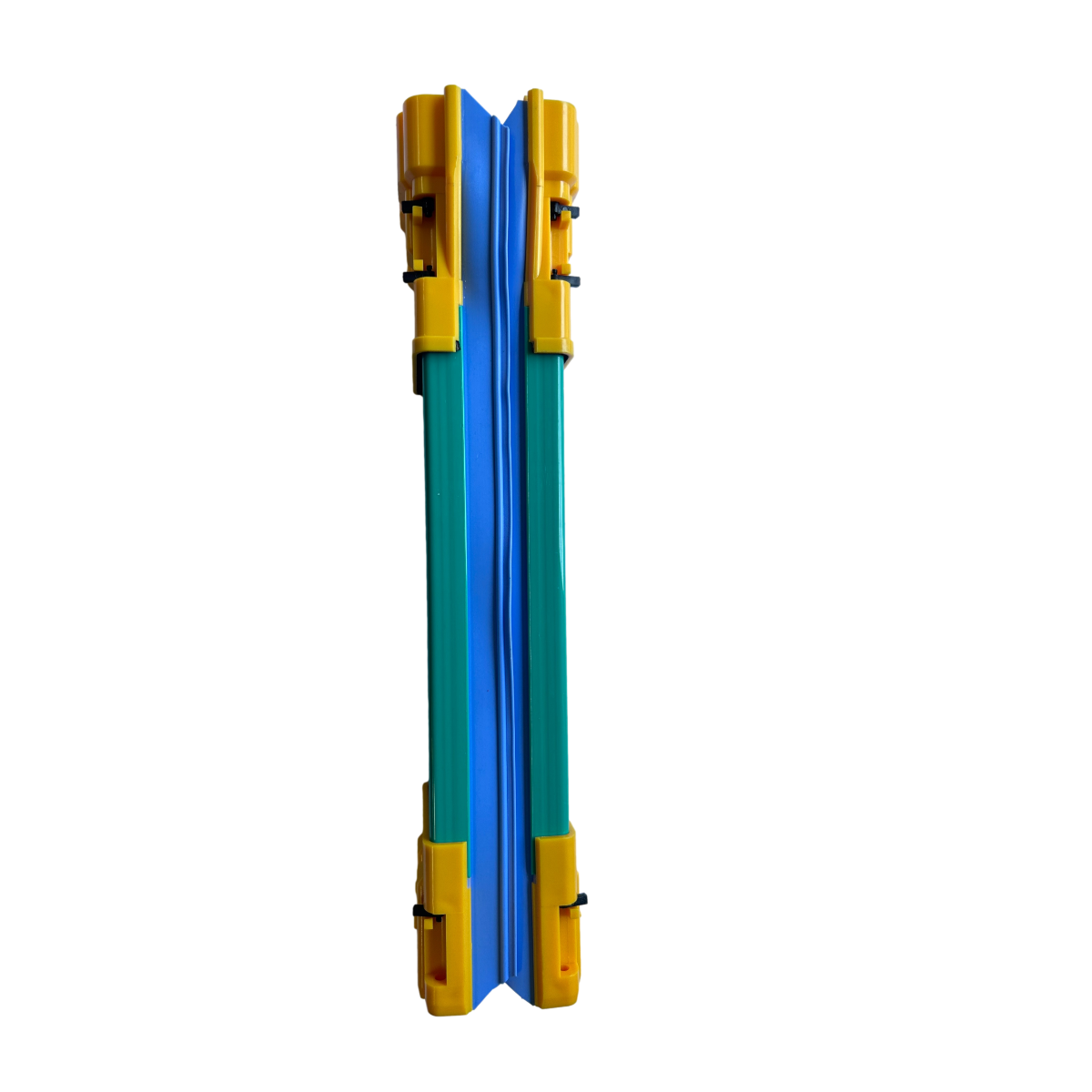

16mm2 Conductor Bar System

  • Model: BHFS-5-16B/80
  • Rated current (A): 80
  • Rated Voltage (V): 380
  • Power supply: three-phase five-wire
  • Unit size (mm): 3016 x 60 x 74
  • Unit weight (kg): 6.3
  • Enclosure protection grade: IP23

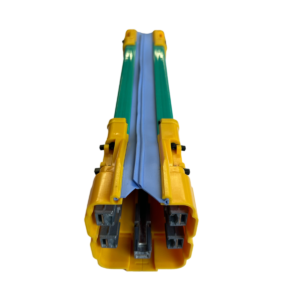

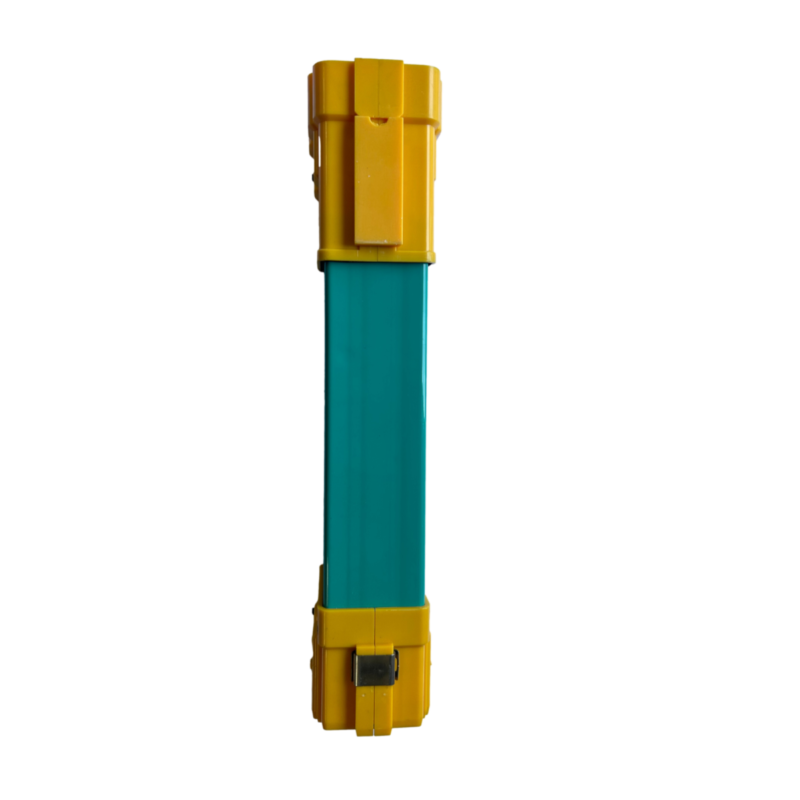

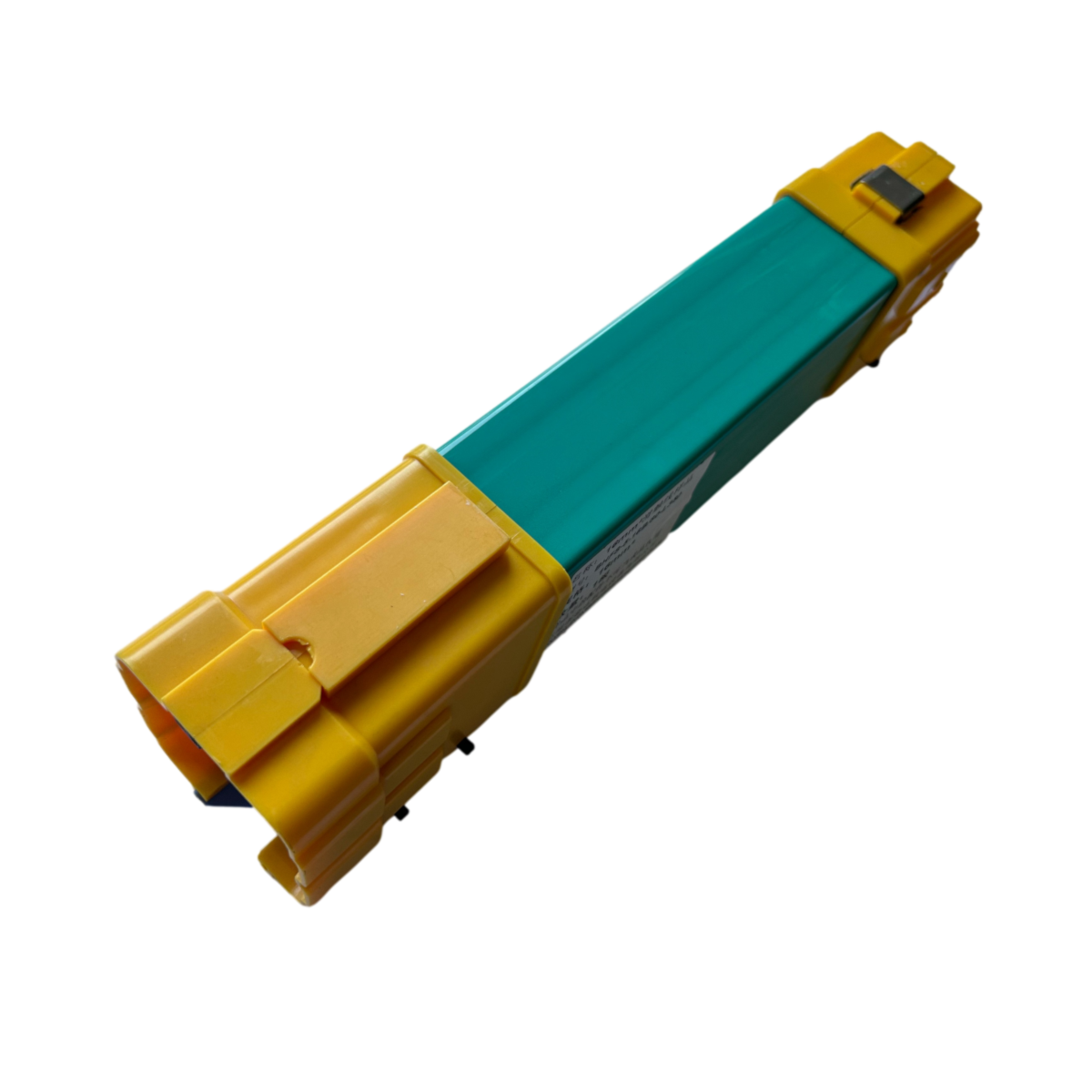

Conductor Bar System is a new type of power distribution device, adopt high-quality insulating materials for its shell, embedded 5 power transmission aluminium conductors as power transmission busbar, and configured with mobile and flexible collector, which is simple and compact in structure, safe and reliable, and saves electric energy.
The unit length is 3016mm (equal to the height of 2 standard sections), and it is directly mounted on the standard section with iron fixtures. Its birth has effectively solved the problems of short life span of cables, easy to be stolen, and easy to be disconnected in windy weather, which affects the safety of the construction and other problems that have been troubling the customers for many years.

Categories: , Tag:

Product standards

Our products comply with ISO 9001, CE and CQC standards.

CE standard

16mm2 Conductor Bar System with features:

  • Does not take up the load of the lift: the conductor bar system is fixed on the standard section, the weight is decomposed into each standard section, and does not increase the cage load.
  • Unaffected by the weather: the conductor bar system is fixed on the standard section, no matter how windy it is, it is stationary and does not affect the operation of the construction hoist.
  • Not easy to lose: the dismantling of the slip cables is not profitable as they have little added value.
  • Damage easy to replace: the conductor bar is assembled parts, which parts are damaged, you only need to replace the damaged parts, do not need to replace the whole root, and the parts are easier to replace, only need to dismantle the joints can be replaced on the spot.
  • No topping: When the construction hoist is equipped with a conductor bar system, If the limiter fails and the collector flushes out of the top, the system will automatically cut off the power supply, and the hoist will stop running and will not be topped.
  • Can be added according to the progress of the project: the length of each is 3016mm, which is equivalent to the height of two standard sections, and the connection method is plug-in type, which can be added with the height of the standard section.
  • Recyclable: it can be used normally for 4 to 6 years, and when the project is completed, it can be used again.

Parameters for 16mm2 Conductor Bar System:

Name of Parameter Model: BHFS-5-16A/80 Model: BHFS-5-16B/80
Rated Current 80A 80A
Rated Voltage 380V 380V
Power Supply Method Three-phase five-wire Three-phase five-wire
Unit Dimensions 3016x60x54 mm 3016x60x74 mm
Unit Weight 7.2kg 6.3kg
Insulation Resistance ≥0.5MQ ≥0.5MQ
Insulation Dielectric Strength Power frequency AC 3750V, 1min without breakdown flashing phenomenon Power frequency AC 3750V, 1min without breakdown flashing phenomenon
Enclosure Protection Grade IP23 IP23
Electric Heat Stability 20 times | Rated 1s 20 times | Rated 1s
Rated short-time withstand current and
Rated peak withstand current		 4.5KA/6.75KA 4.5KA/6.75KA
Environmental Indicators 1. High temperature resistance test: Ordinary type +55°C
2. Low temperature resistance test -30°C
3. Damp heat resistance test Relative humidity 95%, +25°C
4. Atmospheric pressure 86-106KPa		 1. High temperature resistance test: Ordinary type +55°C
2. Low temperature resistance test -30°C
3. Damp heat resistance test Relative humidity 95%, +25°C
4. Atmospheric pressure 86-106KPa
Flame Retardancy V0 grade V0 grade
Power Transmission Sliding Contact Line Parameters Complies with GB3048 (electrical properties of conductors of wires and cables) standard requirements
Resistivity ≤0.0289mm²/m (+20°C)		 Complies with GB3048 (electrical properties of conductors of wires and cables) standard requirements
Resistivity ≤0.0289mm²/m (+20°C)
Current Collector Traction force: F < 80N; Movement speed: V < 100m/min Traction force: F < 80N; Movement speed: V < 100m/min
Brush Coefficient Operation 2000KM, wear < 0.8mm
Effective brush wear: 5-7mm;
Effective working pressure: 1.8-4.08N/cm²		 Operation 2000KM, wear < 0.8mm
Effective brush wear: 7-9mm;
Effective working pressure: 2.3-3.3N/cm²

Comparison Description of BHFS-5-16A/80 and BHFS-5-16B/80:
